CTNET-EVAC-12 Electric Bus Air Conditioner (For 11-12 meters Electric Bus)
Brand Name: CTNET
Car Model: 11m-12m electric bus
Function: Heating and cooling
Certification: ISO9001 2015;CE
Warranty: 1year
Cooling capacity: 32000Kcal/h /37.15KW/127000BTU
Heating capacity: 30000Kcal/h /34.83KW/119000BTU
Refrigerant: R407C or R410A
Temperature setting: 16-32℃
Specification
|
CTNET-EVAC-12Series |
CTNET-EVAC-12C |
CTNET-EVAC-12CH |
CTNET-EVAC-12CHP |
|
Cooling Capacity(Kcal/h) |
32000Kcal/h /37.15KW/127000BTU |
32000Kcal/h /37.15KW/127000BTU
|
32000Kcal/h /37.15KW/127000BTU |
|
Heating Capacity(Kcal/h) |
N/a |
30000Kcal/h /34.83KW/119000BTU |
30000Kcal/h /34.83KW/119000BTU |
|
Function |
Cooling |
Heating and cooling |
Heating and cooling (5-16KW PTC auxiliary heat can be adapted) |
|
Condenser fans |
5 (can be customized with or without brush) |
||
|
Evaporator blowers |
6 (can be customized with or without brush) |
||
|
L x W X H (mm) |
4270*1830*250 |
||
|
Refrigerant: |
R407C or R410A |
||
|
Temperature Setting |
16-32℃ |
||
|
System Voltage |
DC350V-750V |
||
|
Control Voltage |
DC24V |
||
|
Bus Application |
11-12m Electric Bus |
||
Optional function
- The internet of things monitoring system(optional)
- Air electronic purification and sterilization device(optional)
Product Overview
Brief Introduction of CTNET-EVAC Series Electric Bus Air conditioner

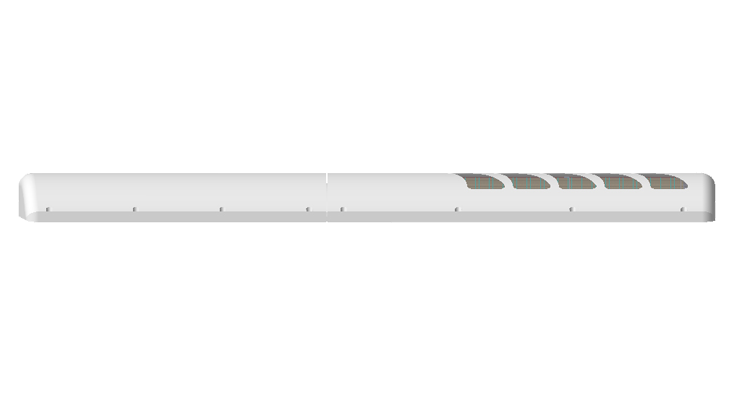

Our products adopt frequency conversion energy-saving intelligent control technology, Ultra-thin, lightweight, rooftop-mounted designed shape.
The products adopt a three-level insulation design and have passed EMC certification.
Features
1. Ultra-thin and lightweight design, which fits perfectly with the body, has low wind resistance, and improves the cruising range;
2. Equipped with frequency conversion energy-saving intelligent control technology, and automatically adjusts the working frequency according to the temperature in the vehicle, saving energy and electricity, and improving the endurance and mileage;
3. Quiet design, air conditioner, and body are fully sealed and shock-absorbing installation, waterproof, heat insulation, and noise reduction;
4. The layout is reasonable, and the ventilation and heat dissipation of the electric control system is fully considered to extend the service life of the electric;
5. It has reliable insulation performance, realizes the three-level safety insulation of electrical level, assembly level, and body installation level, and improves the safety of electric air conditioners;
6. The use of 125/150 degrees high temperature resistant low smoke halogen-free wires improves the electrical safety performance of the air conditioner;
7. All connection terminals are of well-known brands, especially for high-current connections, silver-plated terminals are used to improve the reliability of electrical products;
8. Using a military-grade PLC controller, it has excellent anti-vibration, high-temperature resistance, and anti-interference performance, which improves the stability of the air conditioner.

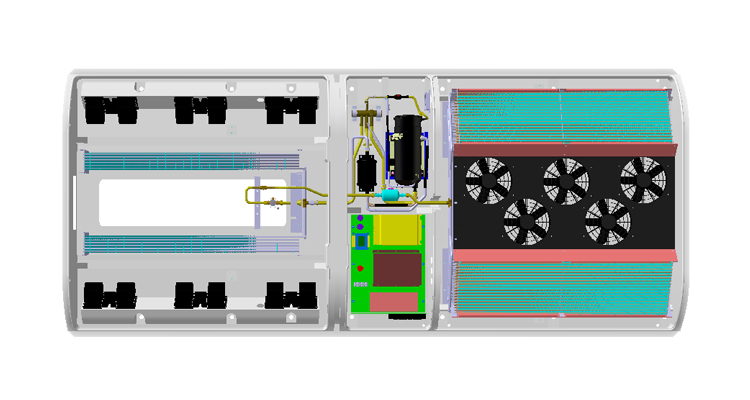

Product Configuration
All air conditioners are made of high-efficiency internally threaded copper tubes and corrugated sheets.
Air conditioner bus adopts brand electric scroll compressor, automatically adjust the cooling capacity.
The electric control system adopts an independent cooling system, which improves the service life of electrical parts
The three-level insulation design is adopted to realize the safety of electric air-conditioning and eliminate the insulation fault of air-conditioning in humid environments.
Installation Images
Chutai Company CTNET-EVAC-8 Electric Bus Air Conditioning System Installed on Yutong Electric City Bus
Certifications
Factory View
The production line of aircon bus
