CTNET-EVAC-8CHP-FT Split type internal top-mounted Electric Bus Air Conditioner (For 8-9 meters Electric Bus)
Brand Name: CTNET
Car Model: 8m-9m electric bus
Function: Heating and Cooling
Certification: ISO9001 2015;CE
Warranty: 1year
Cooling capacity: 24000Kcal/h /27.87kw/95100BTU
Heating capacity: 18000Kcal/h /20.9kw/72000BTU
Refrigerant: R407C or R410A
Temperature setting: 16-32℃
Specification
| CTNET-EVAC-8CHP-FT | |
| Cooling Capacity | 24000Kcal/h /27.87kw/95100BTU |
| Heating Capacity | 18000Kcal/h /20.9kw/72000BTU |
| Function | Heating and cooling |

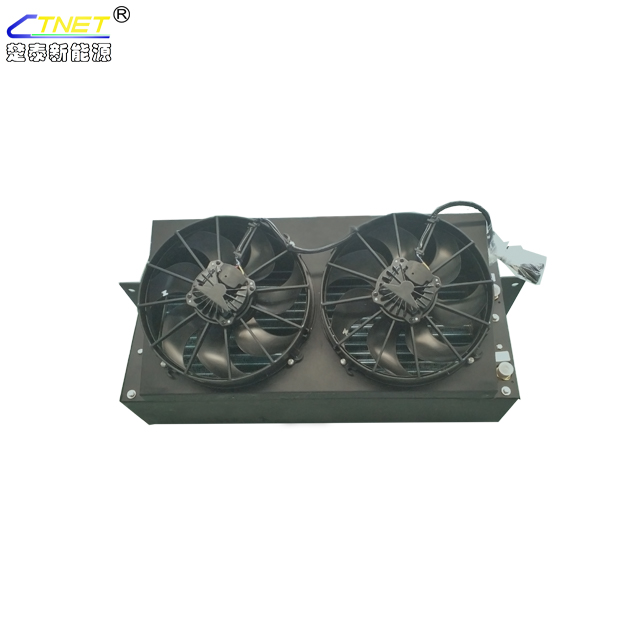

| Condenser fans | 3 |
| Evaporator blowers | 4 |
| L x W X H (mm) | NA |
| Refrigerant | R407C or R410A |
| Temperature Setting | 16-32℃ |
| System Voltage | DC350V-750V |
| Control Voltage | DC24V |
| Bus Application | 8-9m Electric Bus |
1. Split-mounted design, Easy to install.
2. Equipped with frequency conversion energy-saving intelligent control technology, and automatically adjusts the working frequency according to the temperature in the car, saving energy and electricity, and improving the endurance and mileage;
3. Quiet design, air conditioner, and body are Split-type installation, waterproof, heat insulation, and noise reduction;
4. The layout is reasonable, and the ventilation and heat dissipation of the electric control system is fully considered to extend the service life of the electric;
5. It has reliable insulation performance, realizes the three-level safety insulation of electrical level, assembly level, and body installation level, and improves the safety of electric air conditioners;
6. The use of 125/150 degrees high temperature resistant low smoke halogen-free wires improves the electrical safety performance of the air conditioner;
7. All connection terminals are of well-known brands, especially for high-current connections, silver-plated terminals are used to improve the reliability of electrical products;
8. Using a military-grade PLC controller, it has excellent anti-vibration, high-temperature resistance, and anti-interference performance, which improves the stability of the air conditioner
Product Configuration
All air conditioners are made of high-efficiency internally threaded copper tubes and corrugated sheets.

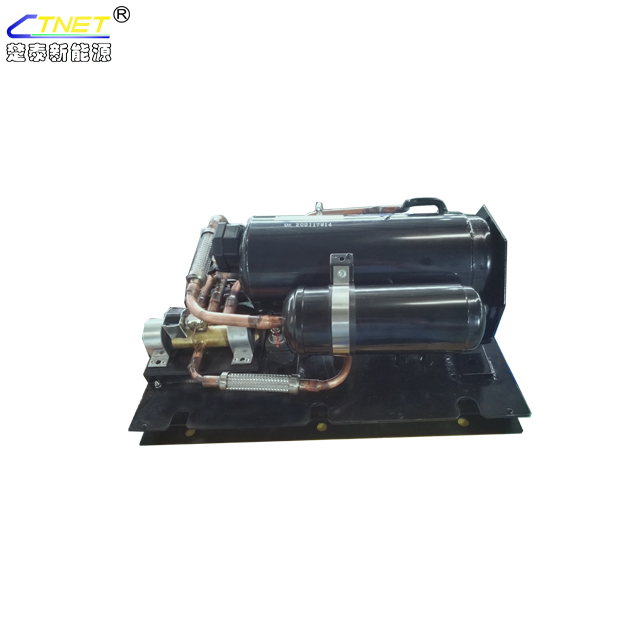

Air conditioner bus adopts brand electric scroll compressor, automatically adjust the cooling capacity.
The electric control system adopts an independent cooling system, which improves the service life of electrical parts
The three-level insulation design is adopted to realize the safety of electric air-conditioning and eliminate the insulation fault of air-conditioning in humid environments.
