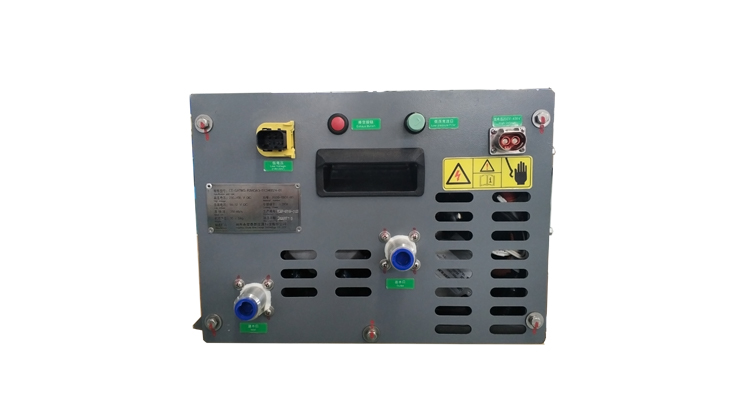

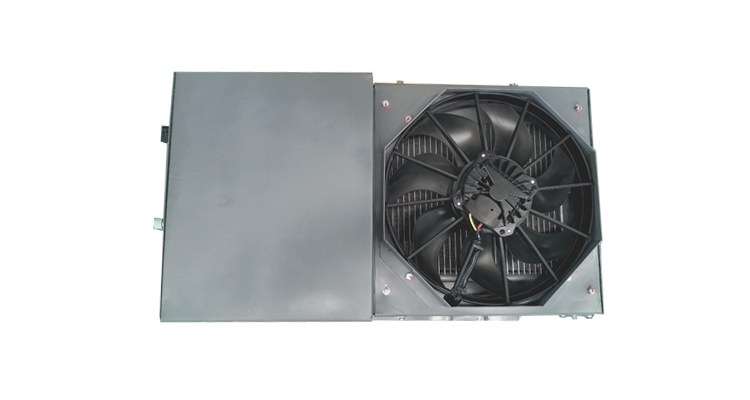

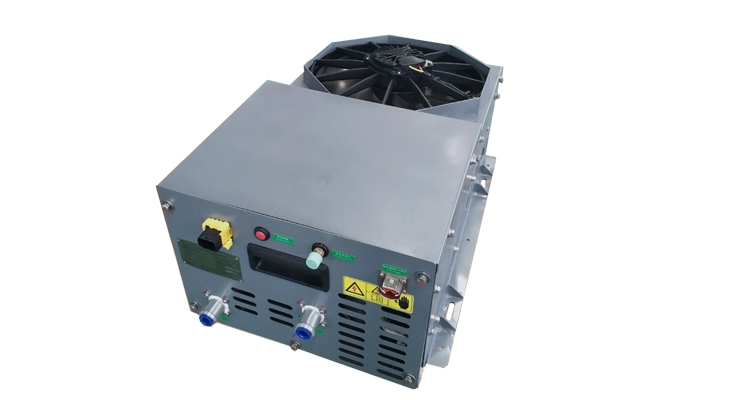

CTNET-GATMS DV 12V 24V Battery Cooling System Temperature Control
CTNET-GATMS DV 12V 24V Battery Cooling System Temperature Control
Function:battery cooling
Application:6-12m Electric Bus
Refrigerating capacity:2~12KW Variable frequency adjustable
Refrigerant:R134a
Outlet temperature range:15-25℃
High Voltage:DC280V-750V
Structure: All aluminum alloy
Power Supply:50A
Low Voltage: DC12V/24V
Application:6-12m Electric Bus
Refrigerating capacity:2~12KW Variable frequency adjustable
Refrigerant:R134a
Outlet temperature range:15-25℃
High Voltage:DC280V-750V
Structure: All aluminum alloy
Power Supply:50A
Low Voltage: DC12V/24V
Product Overview
|
|
| Model | GATMS-4 | GATMS-5 | GATMS-7 | GATMS-4 | GATMS-11 |
| Customized cooling capacity （KW） | 2~4KW Variable frequency adjustable | 4~6KW Variable frequency adjustable | 6~8KW Variable frequency adjustable | 8~10KW Variable frequency adjustable | 10~12KW Variable frequency adjustable |
| Condensing air volume (m3/h) | 2000 | 2000 | 4000 | 4000 | 6000 |
| Rated input power （KW） | ≤1.6KW | ≤2.7 KW | ≤3.6 KW | ≤4.6 KW | ≤5.6 KW |
| Circulating water volume （L/min） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） |
| Input power | DC200~420V | DC200~420V | DC200~420V /DC400-750V | DC400-750V | DC400-750V |
| Control power supply | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V |
| Refrigerant / charge | R134a/260g | R134a /350g | R134a /460g | R134a /470g | R134a /580g |
| Outlet temperature range ℃ | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable |
DV 12V 24V Battery Cooling System temperature control
1. Specially designed battery cooling system for the electric bus; 2. control temperature of electric bus battery; 3. Guarantee the Battery Pack Life;
Company Profile
Jingzhou Chutai New Energy Technology Co., Ltd. is a high-tech enterprise specializing in the development and manufacture of air conditioners, such as air conditioners for rail transit trains, electric passenger car air conditioners, pure electric logistics vehicle refrigerating units, and battery thermal management systems.
