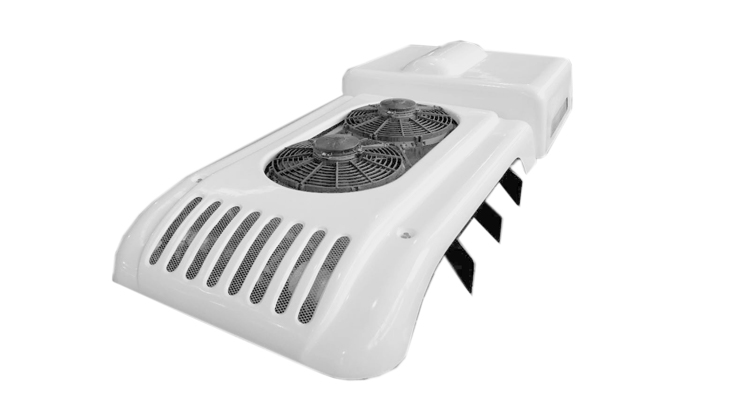

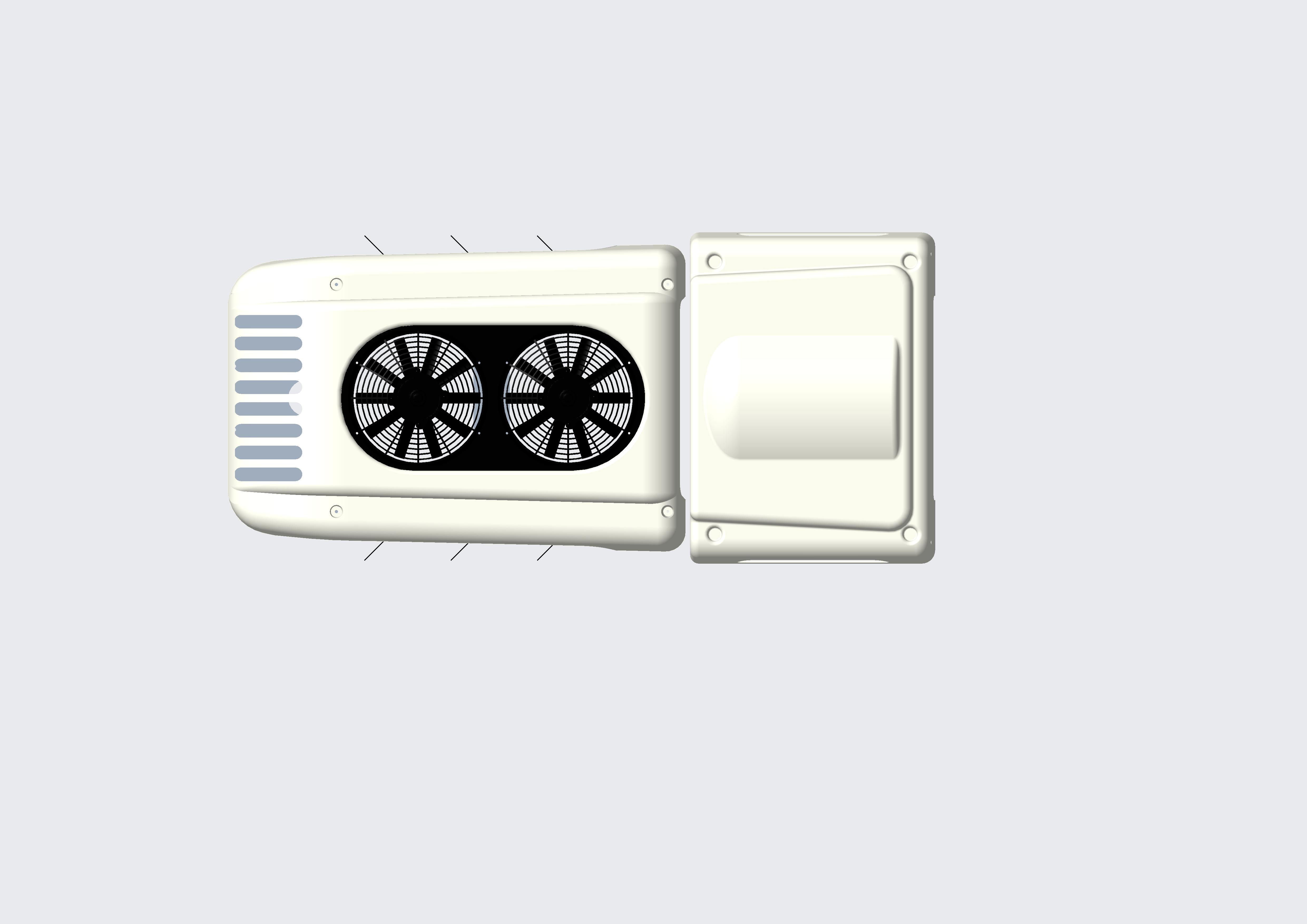

CTNET-EV Series Battery Driven Refrigeration Unit For Electric Vehicle
Application:electric van/electric truck
Refrigerant: R404a Environmental Friendly
Power Voltage:DC200V-420V/DC350-720V/AC220V/AC380V
Control Voltage:DC12V/DC24V
Structure: Front hanging inner roof AND all top-mounted
Specification
|
Model |
EV180 |
EV280 |
EV380 |
|
30℃ Cooling Capacity |
1100W/900W |
2950W/1600W |
3900W/2200W |
|
Evaporation Air Volume |
600m³/h |
1200m³/h |
1600m³/h |
|
High Voltage |
DC150-550V |
DC150-550V/DC350-750V |
DC350-750V |
|
Low Voltage |
DC12V/DC24V |
||
|
Standby Voltage |
AC220V/AC380V |
||
|
Maximum Power Consumption |
1.8KW |
2.8KW |
3.6KW |
|
Cryogen |
R404A |
||
|
Cold Storage Temperature Range |
-20℃-15℃ |
||
|
Unit Installation Form |
Overhead installation of a condenser |
||
12V 24V Battery Driven Refrigeration Unit For Electric Vehicle Description:
2. Green and Environment protection, while the van engine is off, but the cooling system is still on
3. A variety of standby power design, convenient to switch voltage;
4. Equipped with a threaded copper tube and corrugated aluminum sheet the heat exchanger enable strong refrigeration and fast cooling capacity
5. Full automatic intelligent control is adopted, and the temperature precision is ±0.5℃
