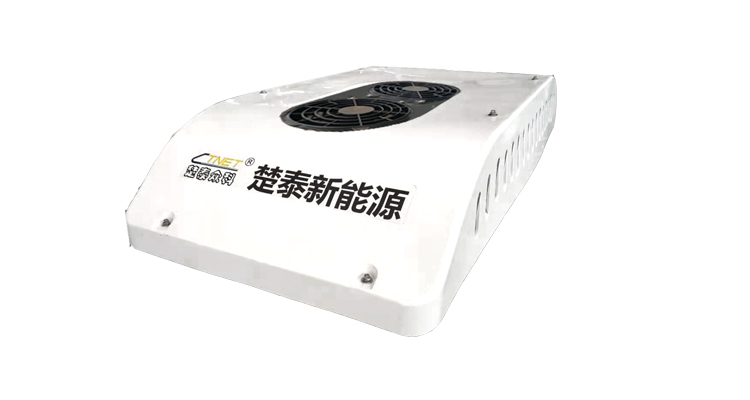

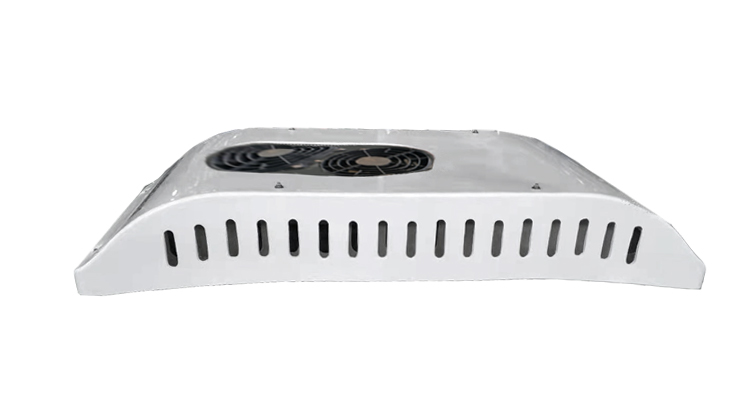

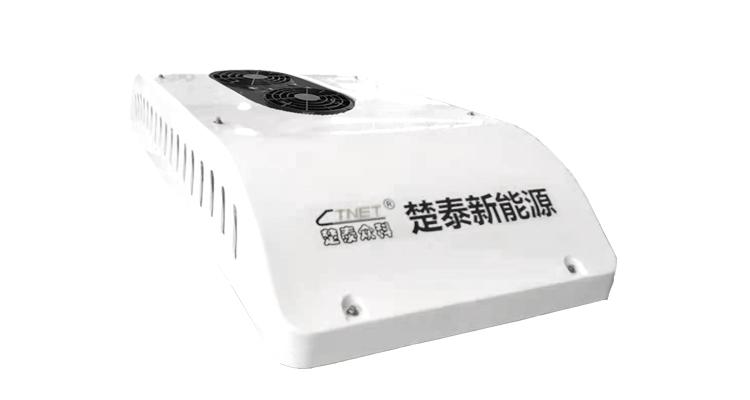

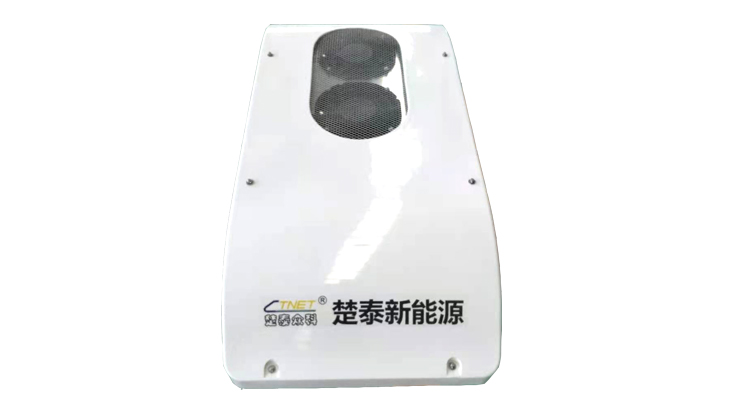

CTNET-BTMS DC 24V Rooftop Battery Cooling System For Electric Bus
CTNET-BTMS DC 24V Rooftop Battery Cooling System For Electric Bus
Function:battery cooling
Application:6-12m Electric Bus
Refrigerating capacity:2~12KW Variable frequency adjustable
Refrigerant: R410a
Outlet temperature range:15-25℃
High Voltage: DC350V-750V
Structure: All aluminum alloy
Power Supply:50A
Low Voltage: DC12V/24V
Application:6-12m Electric Bus
Refrigerating capacity:2~12KW Variable frequency adjustable
Refrigerant: R410a
Outlet temperature range:15-25℃
High Voltage: DC350V-750V
Structure: All aluminum alloy
Power Supply:50A
Low Voltage: DC12V/24V
Product Overview
|
|
| Model | CTNET-BTMS-6C | CTNET-BTMS-7C | CTNET-BTMS-8C | CTNET-BTMS-10C | CTNET-BTMS-12C |
| Customized cooling capacity （KW） | 2~4KW Variable frequency adjustable | 4~6KW Variable frequency adjustable | 6~8KW Variable frequency adjustable | 8~10KW Variable frequency adjustable | 10~12KW Variable frequency adjustable |
| Condensing air volume (m3/h) | 2000 | 2000 | 4000 | 4000 | 6000 |
| Rated input power （KW） | ≤1.6KW | ≤2.7 KW | ≤3.6 KW | ≤4.6 KW | ≤5.6 KW |
| Circulating water volume （L/min） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） | 20（ water-lift ≥10m） |
| Input power | DC350~750V | DC350~750V | DC350~750V | DC350~750V | DC350~750V |
| Control power supply | DC24V | DC24V | DC24V | DC24V | DC24V |
| Refrigerant / charge | R410a/350g | R410a/350g | R410a/780g | R410a/780g | R410a/1.1kg |
| Outlet temperature range ℃ | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable | 15~25℃ adjustable |
| Applicable models | 6 ~ 12m electric bus | ||||
DC 24V Rooftop Battery Cooling System For Electric Bus
1. Especially designed battery cooling system for the electric bus; 2. control the temperature of electric bus battery;
3. Guarantee the Battery Pack Life;
Company Profile
Jingzhou Chutai New Energy Technology Co., Ltd. is a high-tech enterprise specializing in the development and manufacture of air conditioners, such as air conditioners for rail transit train, electric passenger car air conditioners, pure electric logistics vehicle refrigerating units, and battery thermal management systems.
