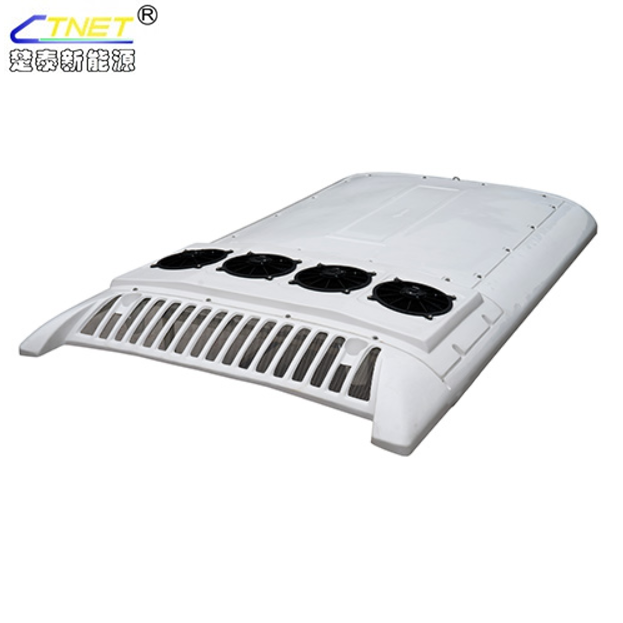

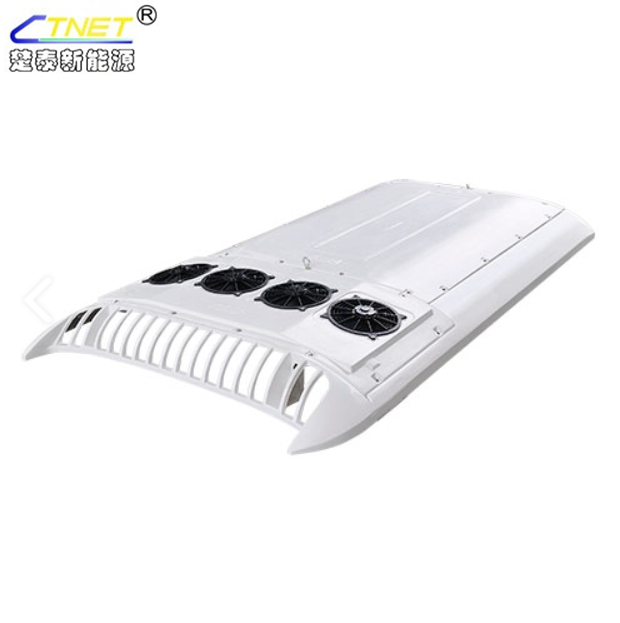

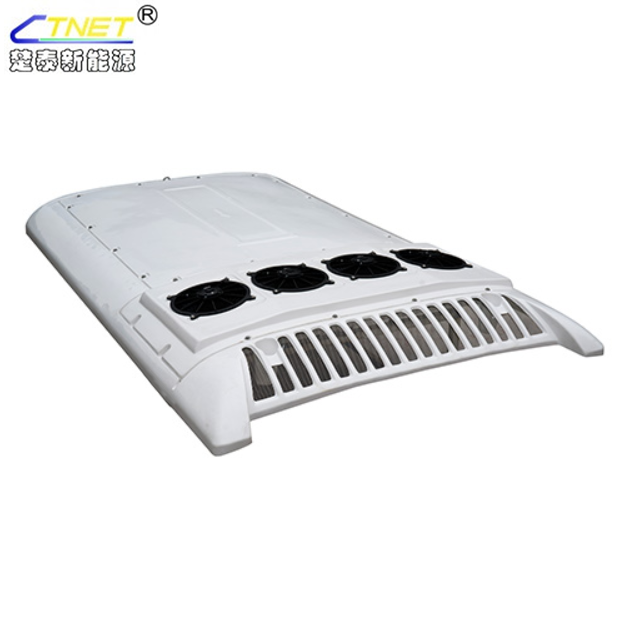

Traditional 9-11m bus air conditioner(CTNET-26-28-30)

Type: Bus Air Conditioner

Brand Name: CTNET

Car Model:9-11m City Bus/Intercity Bus/Coach

Function: Heating and cooling

Certification: ISO9001 2015;CE

Warranty: 1year

Refrigerant: R407C or R410A

Temperature setting: 16-32℃
Send an inquiry
Online contact

Product Description

Brief Introduction of CTNET Series Bus Air conditioner

Our products adopt frequency conversion energy-saving intelligent control technology, with Ultra-thin, lightweight, and rooftop-mounted designed shape.

Features

1. Ultra-thin and lightweight design, which fits perfectly with the body.

2. Equipped with frequency conversion energy-saving intelligent control technology, and automatically adjusts the working frequency according to the temperature in the car, saving energy and electricity.

3. Quiet design, air conditioner, and body are fully sealed and shock-absorbing installation, waterproof, heat insulation, and noise reduction;

4. The layout is reasonable, and the ventilation and heat dissipation of the electric control system is fully considered to extend the service life of the electric;

5. It has reliable insulation performance, realizes the three-level safety insulation of electrical level, assembly level, and body installation level, and improves the safety of electric air conditioners;

6. The use of 125/150 degrees high temperature resistant low smoke halogen-free wires improves the electrical safety performance of the air conditioner;

7. All connection terminals are of well-known brands, especially for high-current connections, silver-plated terminals are used to improve the reliability of electrical products;

8. Using a military-grade PLC controller, it has excellent anti-vibration, high-temperature resistance, and anti-interference performance, which improves the stability of the air conditioner;





PRODUCT CONFIGURATION

IMG_256

IMG_260

IMG_258

All air conditioners are made of high-efficiency internally threaded copper tubes and corrugated sheets, and low-cost parallel flow aluminum heat exchangers are not used.



The electric control system adopts an independent cooling system, which improves the service life of electrical parts



Ultra-thin product design: reduce wind resistance, reduce energy consumption; high reliability, strong stability, normal service life as long as 12 years.



IMG_262

IMG_264

IMG_266

Air conditioning adopts an imported brand compressor.

* the air conditioner shell is made of heat-resistant and high-strength material, so the air conditioner will not appear Water inflow



The three-level insulation design is adopted to realize the safety of electric air-conditioning and eliminate the insulation fault of air-conditioning in humid environments.

The air conditioner uses ultra-quiet design, sound insulation, vibration reduction, and other measures to improve the comfort of air-conditioned vehicles.



Certifications

IMG_256



Successful Project

IMG_256

IMG_260

IMG_258

Electric Bus for Shanghai World Expo 2010

Electric Bus for Beijing Two Sessions

Electric Bus for Dalian Davos Conference



IMG_262

IMG_264

IMG_266



Wuhan Metro Air Conditioning Frame Repair and Overhaul Project



SAIC New Energy Electric Bus





Shenzhen public electric bus
