CTNET-36CHF Series Rooftop RV Air Conditioner & Ambulance Air Conditioner | DC 12V/24V AC 110V 220V
Function: Heating and Cooling
Cooling capacity: 2800-3600W
Heating capacity:2800-3400W
Refrigerant::R410a
Temperature setting:16-32℃
Voltage: DC 12V/24V AC 110V 220V
Drive Type: Battery Powered/ AC 110V 220V
Color:Blue/white/yellow/red,etc
Product Description
Electric Rooftop Air Conditioner for RV, Ambulance, Special Vehicle
DC 12V 24V AC 110V 220V Lightweight Electric Air Conditioner is designed to be mounted on the roof of an RV or Special Vehicle(Ambulance, Food Truck, Fire Truck, etc) to provide heat pump cycle heating and cooling. The unit is suitable for vehicles with a roof thickness of 30 to 100 mm. The unit must be installed within ± 10 ° C of the horizontal plane. Not suitable for homes and apartments. Overhead air conditioning is not suitable for installation in construction machinery, agricultural machinery, or similar equipment. If exposed to strong vibrations, it will not work properly. The function of the air conditioner is to ensure that the temperature is within the range of-2 ° C and 52 ° C.
The Solution for Ambulance--A Rooftop Air Conditioner
A patient compartment that is powered by an independent 200V-750V power source does not rely on the chassis power system and allows for a more powerful, more efficient cooling experience. Maximized Cooling, Energy-efficient, Less Wear & Tear, Cleaner Air.
Specification
Technicaldata
Contains fluorinated greenhouse gases. Hermetically sealed equipment.
| ITEM MODEL |
CTNETLite CT36CHF |
CTNETPlus CT36CHF |
| Compressor cooling capacity: | 3600 W | |
| Cooling capacity based on ISO 5151: | 2813W | 3468W |
| Heating capacity based on ISO5151: | 2821W | 3417W |
| Rated input voltage: | DC200-750V AC 110V 220V | |
| Rated current cooling: | 3.2A | 3A |
| Rated current heating | 2.6A | 3A |
| Required fuse: | 10A | |
| Operating temperature range: | –2 °C to +52°C | |
| Refrigerant: | R-410A | |
| Refrigerant quantity: | 0.650kg | 0.750kg |
| CO2 equivalent: | 1.357t | 1.566 t |
| Global warming potential(GWP): | 2088 | |
| Protection class(outdoor unit): | IPX4 | |
| Suggested max. vehicle length (with insulated walls): |
<6m | >7.5m |
| Dimensions LxWxH (height above vehicle roof): |
997 x 665x 240mm | 1070 x 750x 280mm |
| Weight: | 37kg | 44kg |

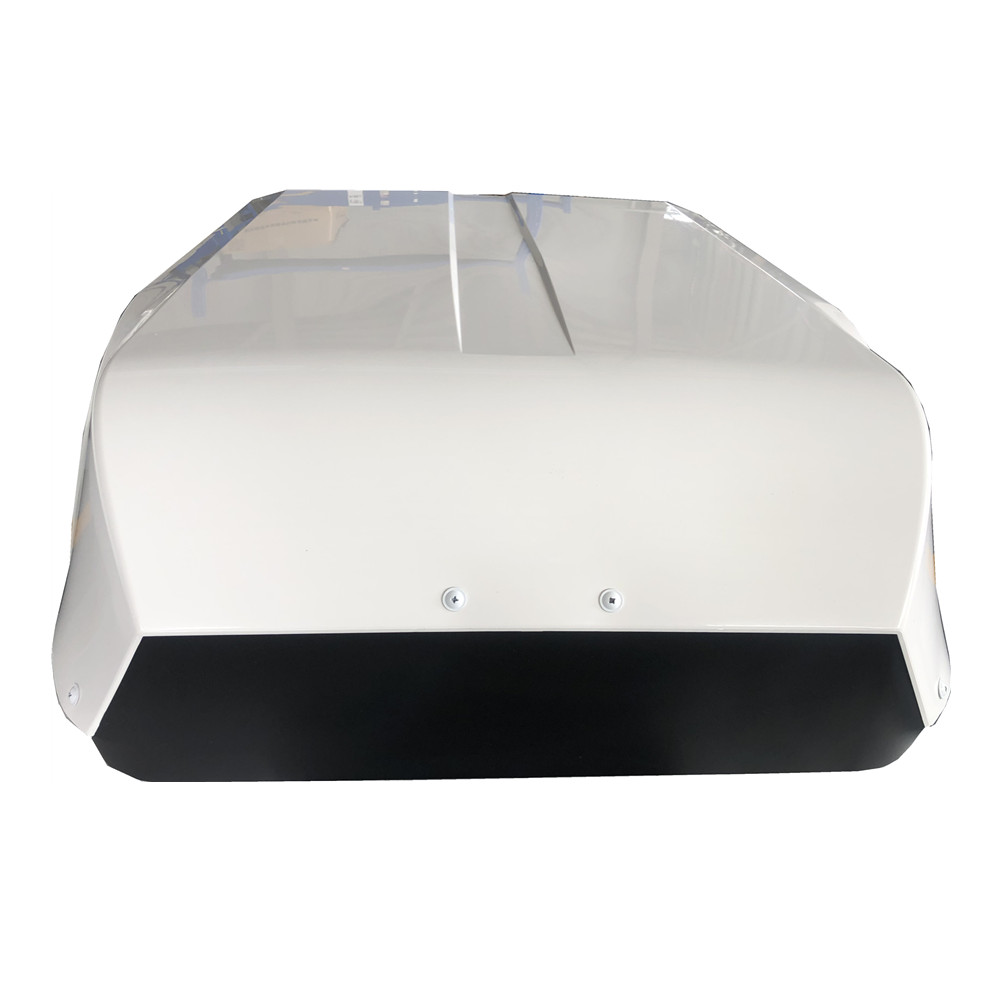

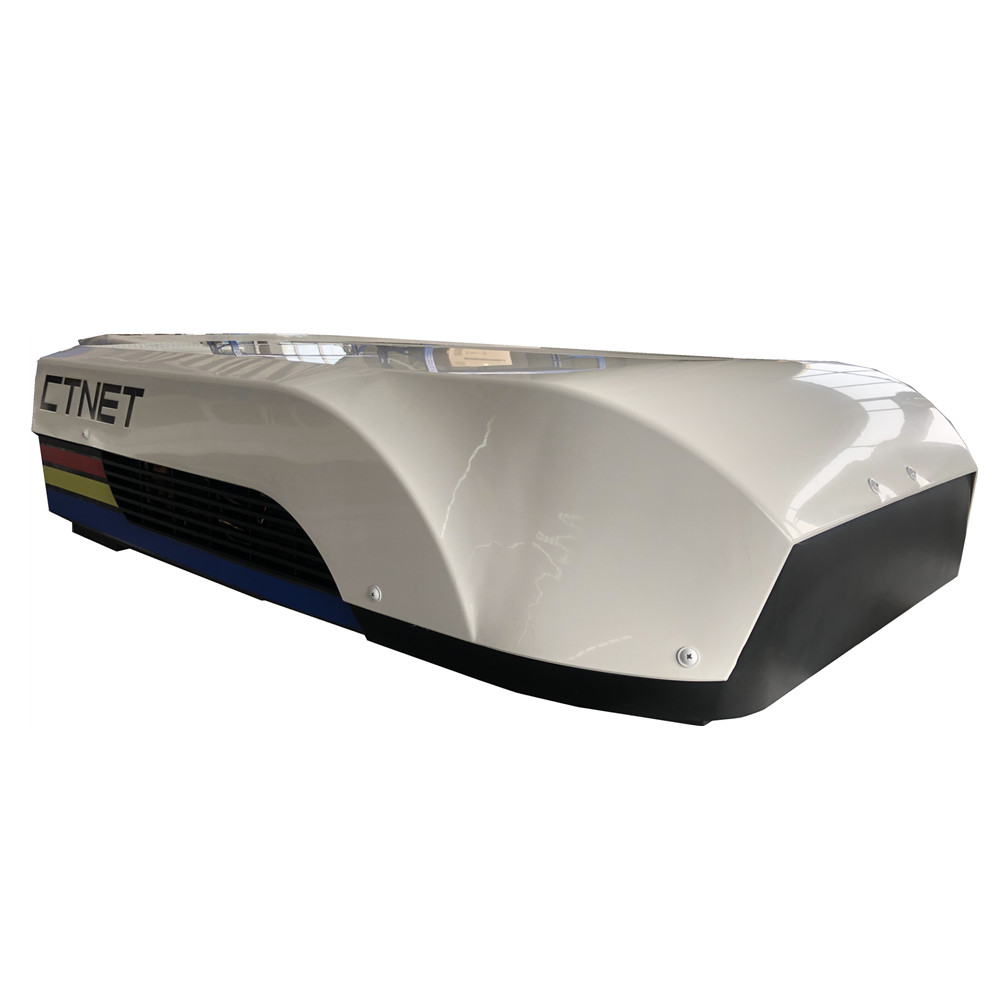

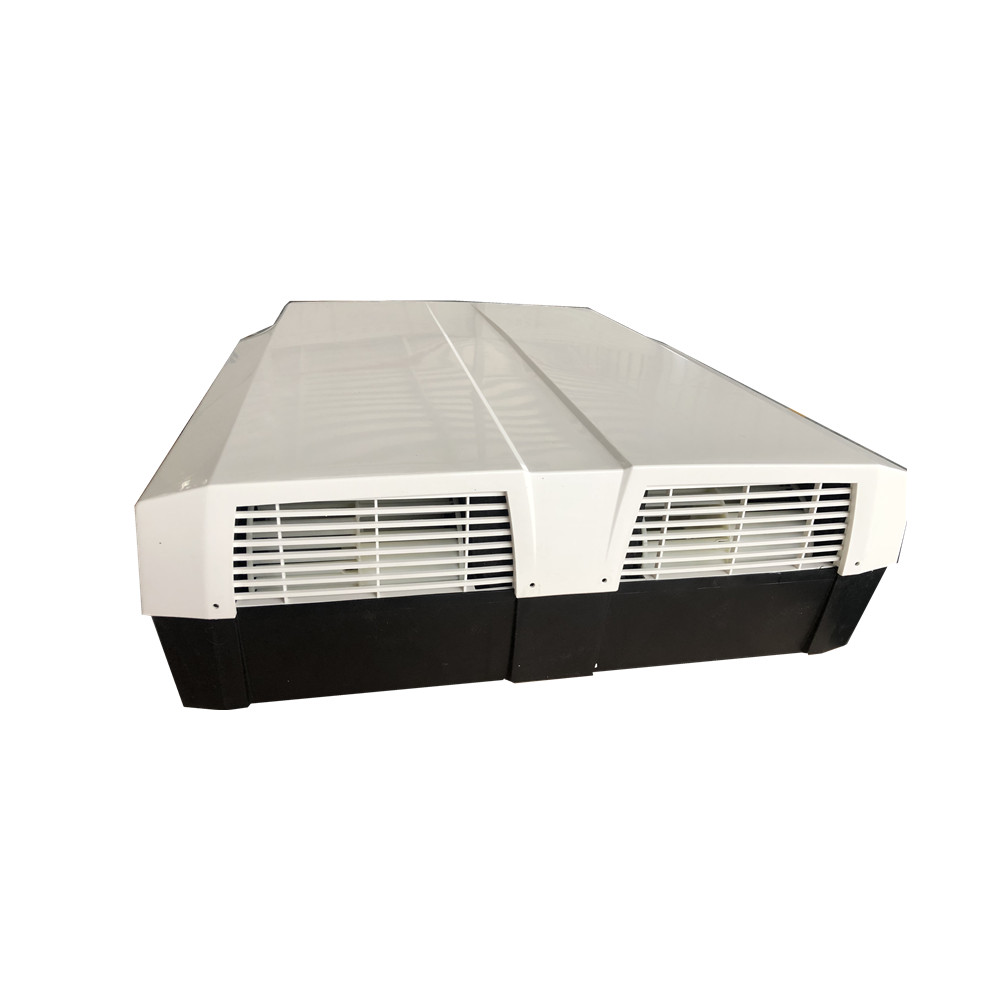

Details Images
Product Configuration
All air conditioners are made of high-efficiency internally threaded copper tubes and corrugated sheets.
Air conditioner adopts brand electric scroll compressor, automatically adjust the cooling capacity.
The electric control system adopts an independent cooling system, which improves the service life of electrical parts
The three-level insulation design is adopted to realize the safety of electric air-conditioning and eliminate the insulation fault of air-conditioning in humid environments.
Scope of delivery
| fig. 1 | Quantity | Description | |
| 1 | 1 | Roof air conditioner | |
| 2 | 1 | Roof plate | |
| 3 | 1 | Air distribution box (ADB) | |
| 4 | 1 | ADB center cover | |
| 5 | 5 | Duct sections | |
| 6 | 3 | Cable connectors | |
| 7 | 4 | Fastening bolts | |
| 8 | 1 | Remote control |
Dimension
Certifications
