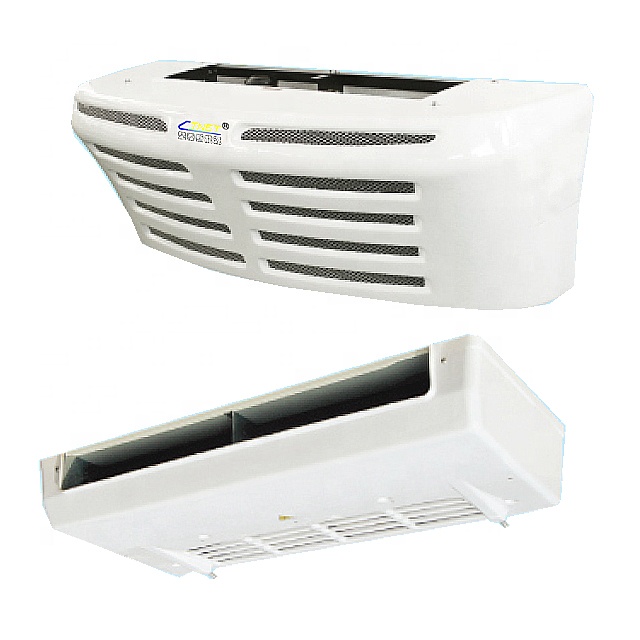

CTNET-FV Transport Refrigeration Unit
Application:van/truck/trailer
Refrigerant:R404a/1.2kg~3.0kg
Structure: Front hanging inner roof
Voltage:12V/24V
Condenser Fan:1~3
Evaporator Fan:2~4
Temperature Range:-25℃~30℃
Cooling Capacity(30℃~2℃):3850W-8800W
Cooling Capacity(2~ -18℃):1800W-4700W
Power Source:Engine Driven
Specification
|
CTNET-FV series |
CTNET-FV-HD380 |
CTNET-FV-HD580 |
CTNET-FV-HD600 |
CTNET-FV-HD880 |
CTNET-FV-HD1080
|
|
Temperature Range In Container |
-25℃ ~ +30℃ |
||||
|
-13℉ ~ +86℉ |
|||||
|
Cooling Capacity （30℃ ~ -2℃） (86℉ ~35.6℉） |
3850W |
5100W |
5500W |
7800W |
8800W |
|
Cooling Capacity （-2 ℃ ~ -15℃) （35.6℉ ~ 5℉） |
1800W |
2600W |
2750W |
4300W |
4700W |
|
Voltage(DC) |
12V |
12V/24V |
12V/24V |
24V |
24V |
|
Refrigerant/Volume |
R404a/1.2kg |
R404a/2.3kg |
R404a/2.3kg |
R404a/3.0kg |
R404a/3.0kg |
|
Condenser Size |
980*825*180 |
1078*489*388 |
1078*489*388 |
1778*378*340 |
1778*378*340 |
|
Evaporator Size |
994*558*200 |
1378*620*236 |
1378*620*236 |
1378*620*236 |
1378*620*236 |
|
Condensing Fans Number |
1 |
2 |
2 |
3 |
3 |
|
Evaporation Fans Number |
2 |
3 |
3
|
4
|
4 |
Product Overview
China Manufacturers 12v/24v vehicle refrigeration unit for truck and trailer
Our Engine Driven transport refrigeration units（Model: CTNET-FV series) can apply for all kinds of cargo vehicles(van/truck/trailer) according to the customer's needs.Also We have All-electric Operated Rooftop Units for another choice.
1.The core components are designed with high efficiency and fast cooling system greatly increase the unit durability and cooling capacity;

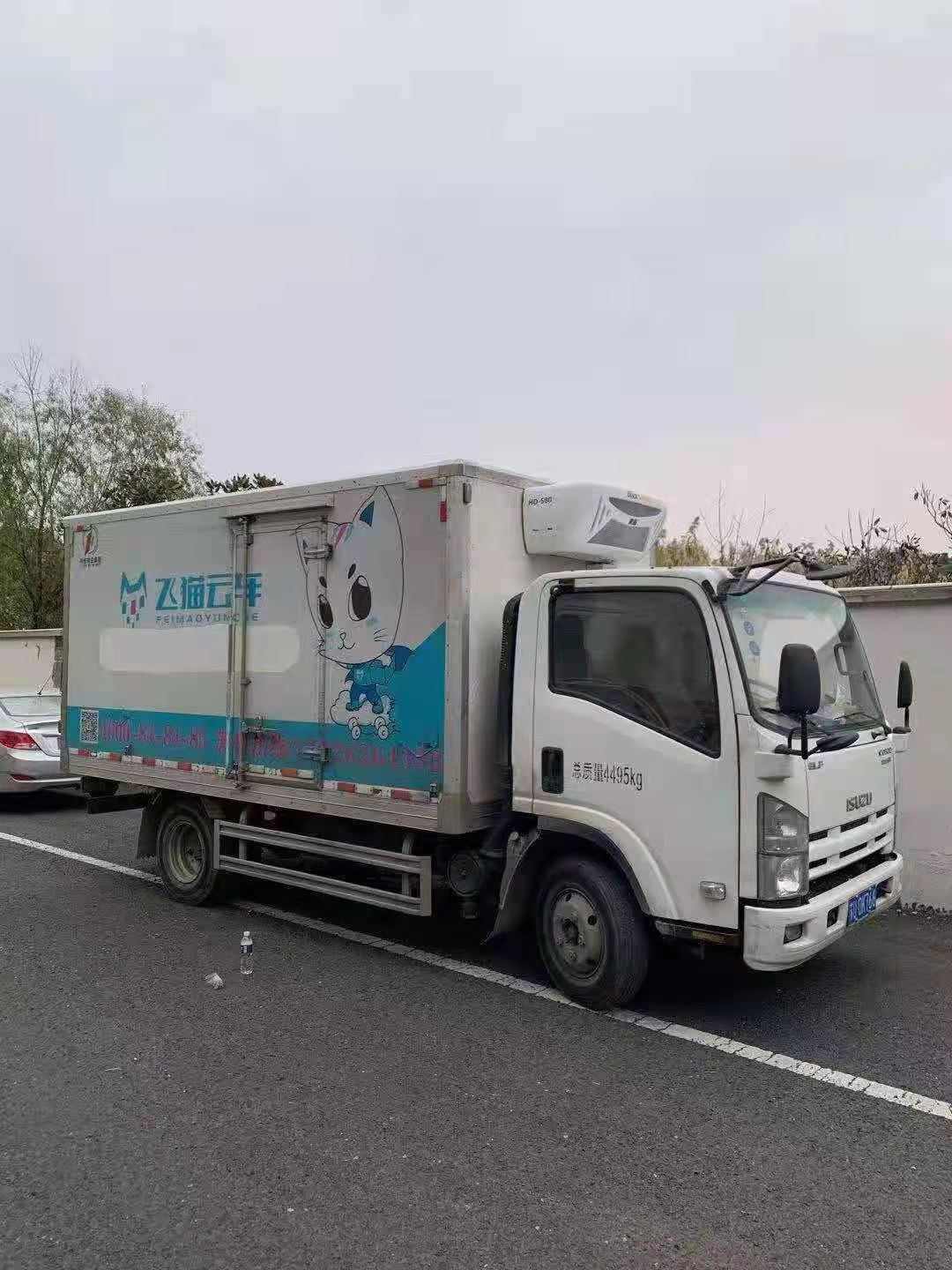

2. The unit suits various installation methods includes front hanging inner roof type and outer top inner roof type, etc
3. We manufacture multiple types of products for a wide range of sizes of vehicle box, 5m³ ~ 55m³.
4. Fast cooling speed:The units can keep the storage area temp rapidly down to 0℃~8℃ （32℉~46.4℉）In some area with extrmely hot ambient temperature
Storage Temperature
The cooling temperature range is Customizable, we can set the transport temp according to your storage items:
What to consider when selecting a truck refrigerated unit?
Q1: What type your vehicle is,cargo van or truck?
A: If your vehicle is van,we have rooftop model chiller unit customized for van, if your vehicle is truck,we will help you recommend you suitable truck refrigeration. Mail to ctnetac@gmail.com, Let CTNET answer your all questions.
Q2:What dimension your vehicle is?
A: Your vehicle's storage container volume, length,width, height.
Q3:What temperature do you want to reach?
A: Temperature:-25℃ ~ 0℃(-13℉~32℉) or 0℃ ~ 10℃(32℉~50℉) and more according to your requirements.
Q4:What is your engine's power socure fuel oil or electric power?
A:We have different solutions for each vehicle: Engine Driven directly or Battery Powered
Q5:What is ambient temperature during tranport?
A:We will suggest most suitable refrigration unit for customers due to ambient temperature during transport.In some area with extremely hot weather can reach 40℃~50℃,it needs refrigerated unit with large cooling capacity to keep the storage box cool.
